Your are here: Home >> Products >>Alcohol Precipitation Tank
Alcohol precipitation tank is suitable for alcohol sediment in Chinese medicine, oral liquid, foodstuff, health-protective products and chemical industry. Alcohol sediment is developed from traditional technology, mainly used for freeze Chinese medicine liquid getting fried and condensed or to operate warm alcohol sediment, also can be used to operate water sediment after Chinese herbs being extracted.
Directory
- Structure of Alcohol Precipitation Tank
- Characteristics of Alcohol Precipitation Tank
- Technical Parameters of Alcohol Precipitation Tank
- Alcohol Precipitation Tank Finished Picture

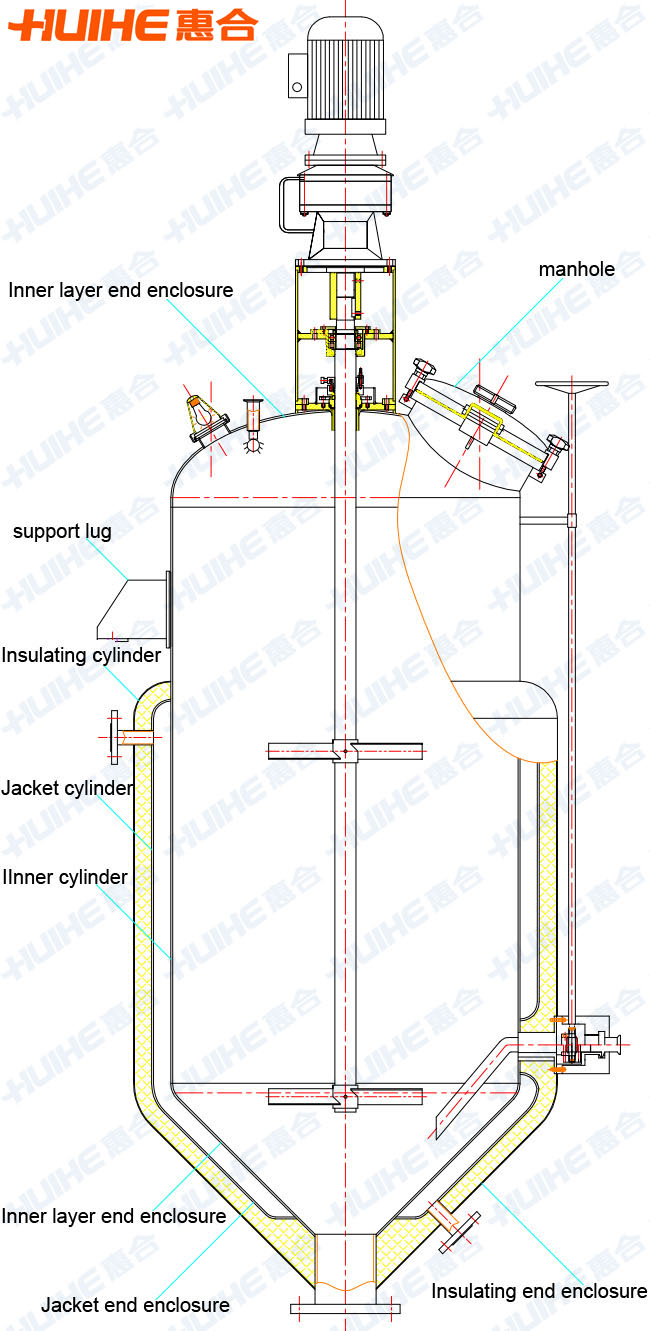

Structure of Alcohol Precipitation Tank
This alcohol deposition recovery equippment is enclosed by the ellipsoidal head clip set, the cylinder body with cone bottom, inner tank installed stirring and special liquid pipe.
Characteristics of Alcohol Precipitation Tank
1, Stainless steel SUS304 or SUS306 manufacturing;
2, Equipped with high-pressure water automatic spray cleaning system;
3, It can connect the low temperature in jacketed cooling water;
4, Transmission part adopts mechanical seal, explosion-proof motor to ensure the production process;
5, Conform to GMP standard, the equipment surface mirror or inferior smooth processing.
Technical Parameters of Alcohol Precipitation Tank
|
Model |
JC-330 |
JC-500 |
JC-1000 |
JC-1500 |
JC-2000 |
JC-3000 |
JC-6000 | ||
|
Volume （m³） |
0.3 |
0.5 |
1.0 |
1.5 |
2.0 |
3.0 |
6.0 | ||
|
Heating transfer area（㎡） |
1.8 |
3.0 |
4.5 |
6.5 |
7.5 |
8.5 |
13 | ||
|
Working temperature （℃） |
Normal temperature ~-15 | ||||||||
|
Jacket designed pressure （Mpa） |
0.09-0.4 | ||||||||
|
Pressure in tank（Mpa） |
Normal pressure | ||||||||
|
Stirring power（KW） |
0.75 |
0.75 |
1.5 |
2.2 |
2.2 |
3.0 |
5.0 | ||
|
Stirring speed（r/min） |
72 |
72 |
72 |
72 |
72 |
72 |
125 | ||
|
Body size（mm） |
Inter diameter |
600 |
800 |
1000 |
1200 |
|
|
| |
|
Outer diameter |
800 |
1000 |
1200 |
1400 |
|
|
| ||
|
Height |
900 |
1350 |
1700 |
|
|
|
| ||
Notes:
The technical parameters of alcohol deposition recovery equippment is standard configuration. Any specific requirements, please let us know.
Alcohol Precipitation Tank Finished Picture
